Stainless Steel Press-Fit Tubing
Pros:
More than 10x Quicker to Install
No Welding or Hot Works Necessary
No Consumables
OH&S Friendly
Simple Tooling
Environmentally Friendly
Built In-Situ
Temperature Range: –20 to 200°C
Wide Size Range – 15mm to 168mm
Extensive Fitting Range

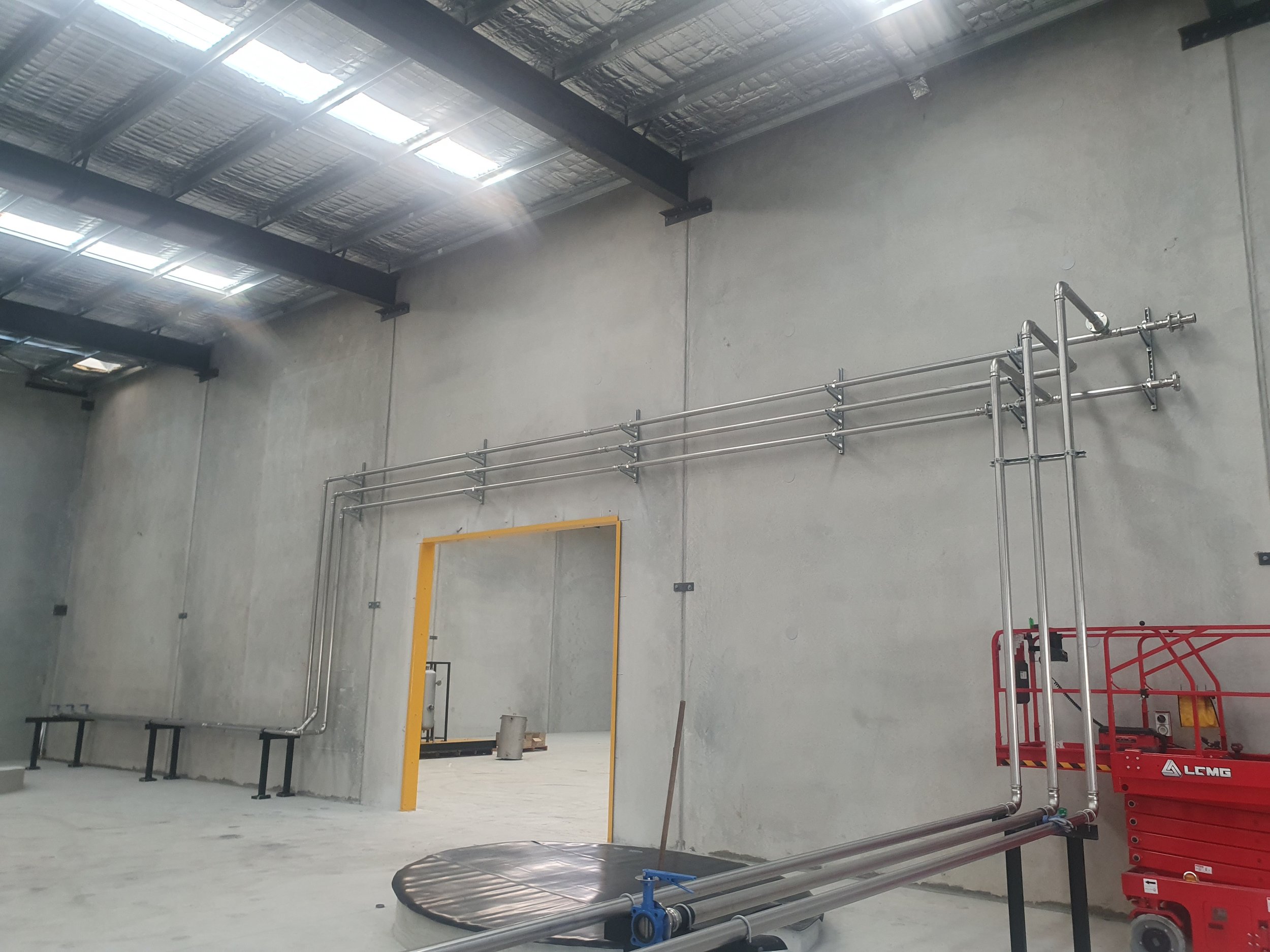

R-KAE Maintenance Solutions is a supplier & installer of stainless steel press fit piping. Press fit is a faster and easier solution to conventional pipe joining methods. This fitting type doesn’t require welding, threading or soldering, so it can be installed much quicker than other methods.
Numerous benefits are associated with choosing press fit. Time-saving is the most important one of them all. Their ‘fit and forget’ solution makes the pipeline fabrication efficient by more than 50 per cent in terms of the total time taken in project completion.
Specifically designed to help installers work across their jobs more effectively, press fit pipe systems provide a solid answer to the exhaustive amounts of labour involved in pipeline fabrication. It emerges as a huge influence that delivers significant savings on time and operational costs.
FAQs
-
Absolutely, the installation process can be done by anyone. Press-Fit Tubing features user-friendly tools with Bluetooth connectivity and requires no welding, soldering, or brazing. This significantly reduces the safety concerns related to hot works and makes installing a much easier process than that of other alternatives.
-
It sure can! Press-Fit is designed for high-pressure applications with a standard, manufacturer-backed guarantee of up to a 40 bar fluid pressure rating across all sizes. Our Press-Fit system can also meet a 50 bar rating available upon formal approval if required.
-
Press-Fit is extremely versatile and can be used for diameters from 15mm to 108mm. It’s suitable for a range of applications, including but not limited to hot and cold water systems, fire and sprinkler systems, various gases, chemical installations, hydrocarbons, and even steam up to 8 bar.
-
Press-Fit Tubing is manufactured from premium raw materials and designed to reduce environmental impact during installation and use, making it an excellent environmentally friendly option.
-
Press-Fit Tubing operates successfully across a large temperature range from -20°C to 200°C, making it suitable for diverse environmental conditions and commercial uses.
-
We understand that different projects have different needs, which is why we offer a wide range of press-fit solutions designed to match various specifications. If Press-Fit isn’t the right fit for you, contact us today and we’ll help you find the right solution for your project.
With a range of seal and tube material combinations, stainless steel press-fit tubing covers a broad range of applications.
Contact Us to find a stainless steel tubing solution for your requirements.
